Product Detail

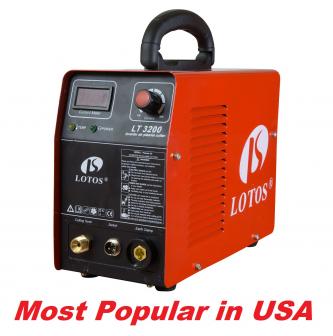

Lotos Plasma cutter LT3200amp

  • Selling type:
  • Buy Now + Haggle
  • Seller location:
  • Cranbourne, Victoria, Australia
  • # of haggles:
  • 0
  • Current Offer:
  • No offer yet
  • Quantity:
  • 10
  • Shipping type:
  • Buyer Pays Shipping Cost
  • Shipping fee:
  • 25.00 AUD
  • Haggle:
  • Buy Now:
  • 259.00 AUD
Meet the Seller
  • Feedback times:
  • 0 times
  • Positive feedback:
  • n/a
  • Member since:
  • 09/03/2017

GeneralOverview



The LT3200 Plasma Cutter is designed for light cutting projects. This unit is the most compact plasma cutter one can find in the market and weights only 8kg (17.6lbs). In the mean time, this powerful unit is powerful enough to cut 8mm (5/16in) metal with 12mm (1/2in) severance thickness, making it an ideal choice for cost conscious DIY hobbyists.










Features

  • 32-amp digital inverter plasma cutter
  • Automatic dual frequency(50/60Hz) under 240V
  • Compact size, ultimate portability and efficient cooling fan system
  • Suitable for stainless steel, alloy steel, mildsteel, copper aluminum, etc.

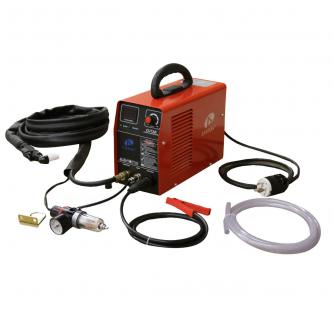

Package Includes:

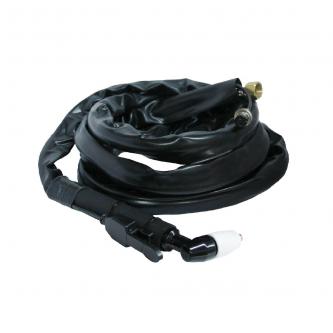

  • Plasma cutting torch CL132 (4m long, 2 prong connection);
  • Ground cable & clamp (2m long);

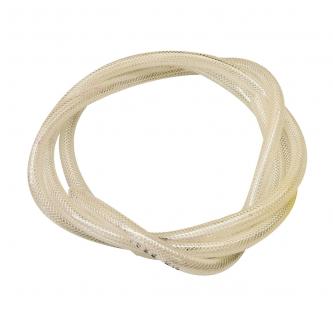

  • Air hose (2m long);
  • 4 air hose clips and 2 air hose connections;

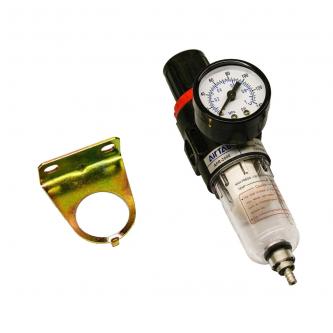

  • Air filter gauge AR01;
  • Mounting bracket for air filter AR01;
  • Air filter AR01
  • User Manual.
  •

Specifications



LT3200 User Manual













GENERAL SPECIFICATIONS

Input Voltages

220V~240V, 1-PH, 50/60Hz

Input Current

220~240V, 1-PH, 30A

Output Current

10~32A

Duty cycle @ 40°C (104°F)

30% @ 32A, 220V



Dimensions with handle

11.6” (259mm) L

6” (152.4mm) W

9” (230mm) H

Weight

17.6lbs (8kg)

Gas Supply

Clean, dry, oil-free air

Recommended Gas Inlet Flow Rate / Pressure

3.6scfm @ 65psi

Input Power Cable Length

6’ (1.8m)

Maximum Severance Cut Thickness*

1/2" (12mm)





MATERIAL*

Mild Steel

Max.10mm @ 32A

Stainless Steel

Max.7mm @ 32A

Aluminum

Max. 10mm @ 32A



WARRANTY

1 Year Warranty Included
